Portable UV Laser Marking Machine 5W | 355nm Cold Processing
-

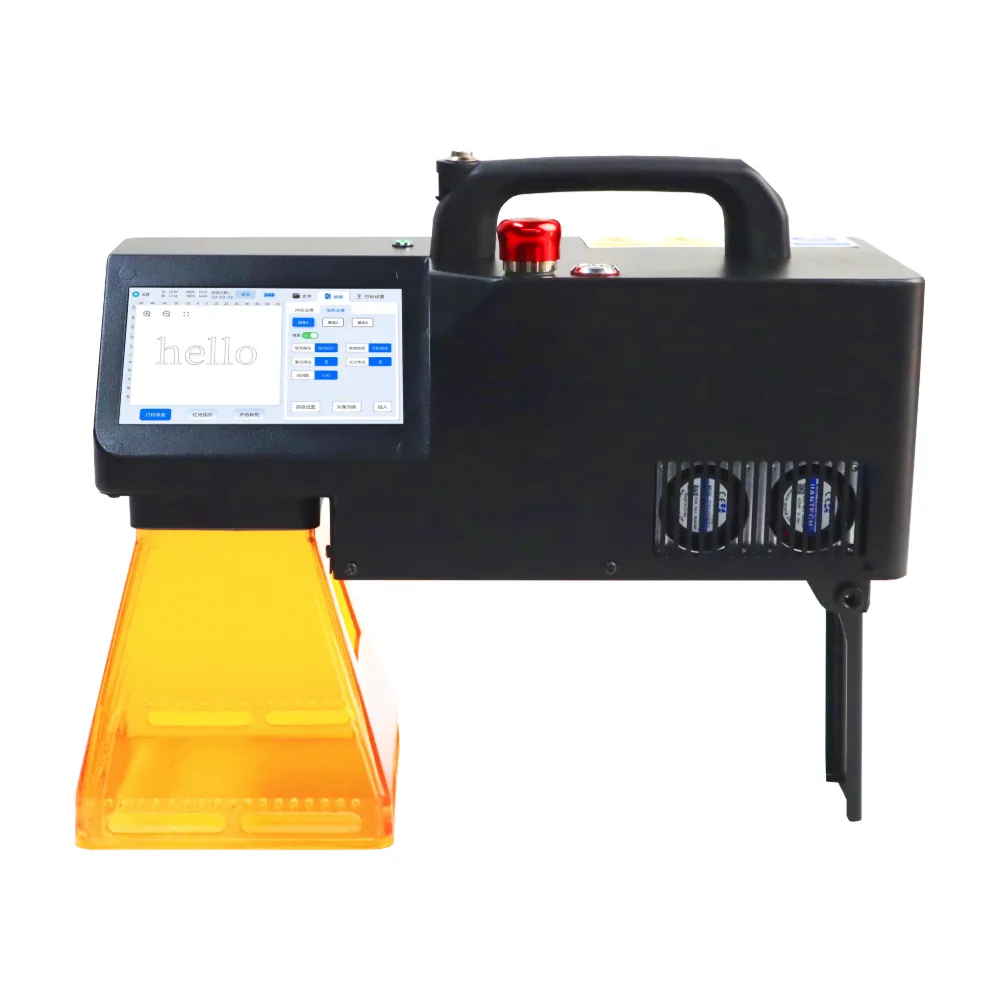

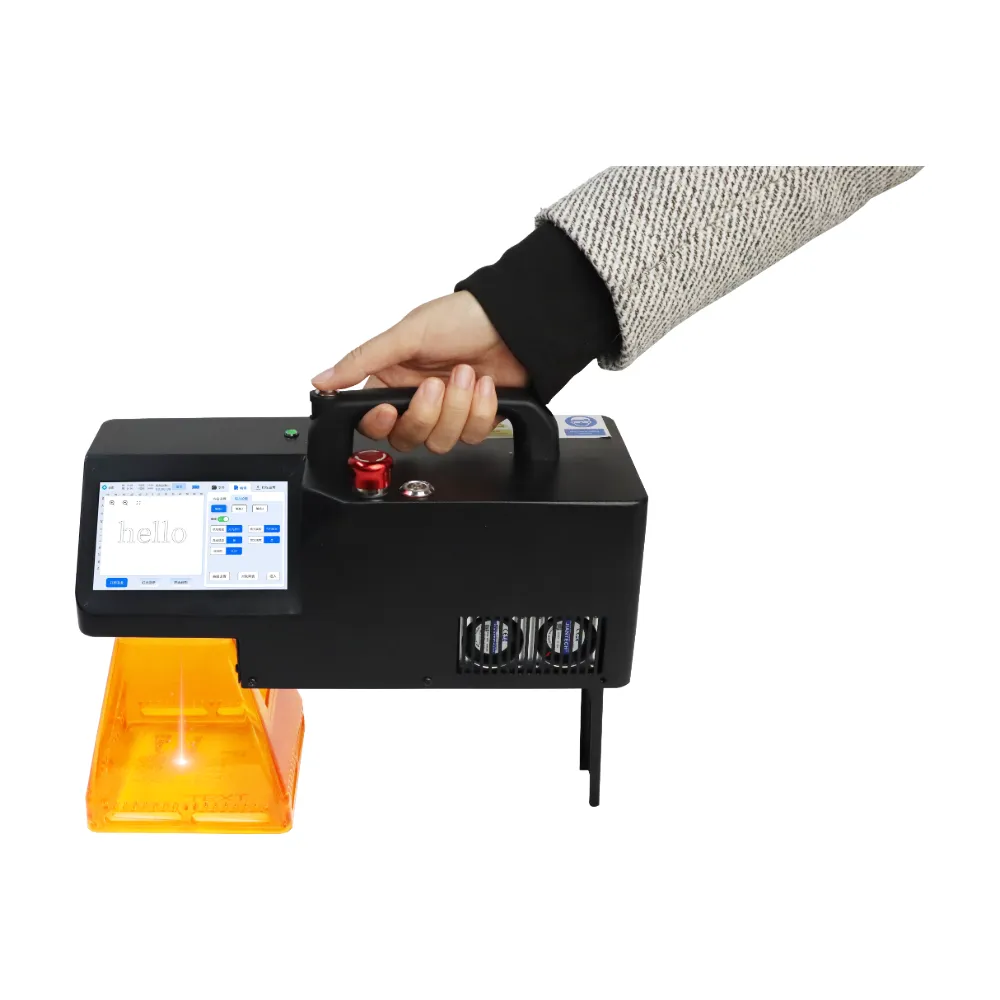

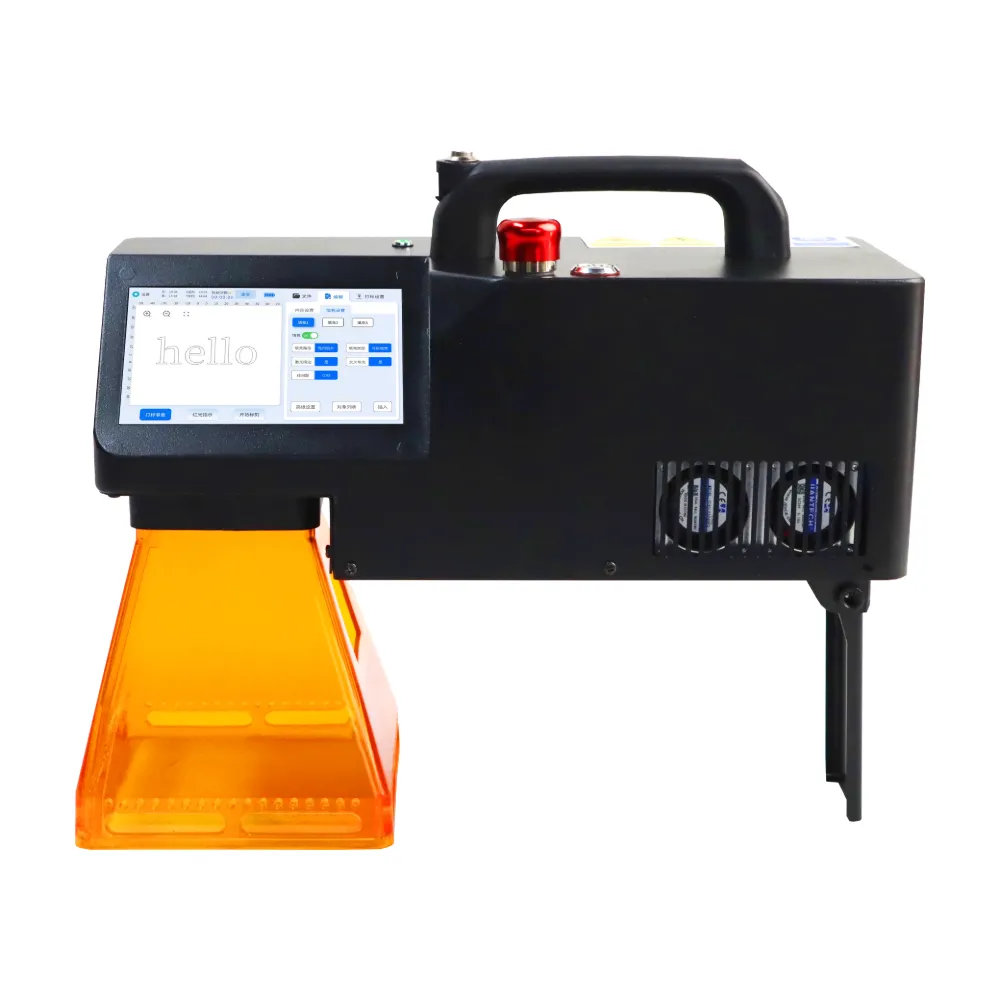

Integrated Touchscreen Interface: High-sensitivity display running a user-friendly Linux system for real-time design editing and parameter configuration.
-
Field Lens & Protective Hood: High-transmittance field lens paired with a orange-tinted laser safety shield to block scattered UV rays during operation.
-
Physical Safety Controls: Dedicated power toggle button, emergency stop switch, and operational status LED indicator on top of the ergonomic handle.
-
I/O & Thermal Management: Dual side-mounted cooling fans for fast heat dissipation, alongside standard USB interfaces and a DC charging port.
Technical Specifications
| Specification | Technical Details |
| Laser Type / Wavelength | 355 nm Ultraviolet (UV) Laser |
| Laser Power / Power Consumption | 5W / ≤200W |
| Marking Area | 80 x 80 mm |
| Engraving Depth | Approx. 0.01 - 0.1 mm (Varies by material) |
| Repetitive Accuracy | ±0.002 mm |
| Power Supply | 23 - 25V |
| Cooling Method | Air Cooling |
| Operating System | Embedded Linux OS |
| Control Interface | Standard USB |
| Supported File Formats |
Graphics: BMP, JPG, PNG, DXF, SVG, PLT Text: TXT, EXCEL |
| Marking Content | Text, 2D/QR Codes, Vector Graphics, Serial Numbers, Geometric Shapes, Freehand Drawing, Spirals, Lissajous Curves |
| System Languages | English, Chinese, Japanese, Russian, Spanish, German, French, Korean, Arabic, Portuguese, Thai, Czech, Polish, etc. |
| Operating Temperature | 0℃ to 30℃ |
| Dimensions (L x W x H) | 317 x 131 x 236 mm |
| Net Weight | 4 kg |
