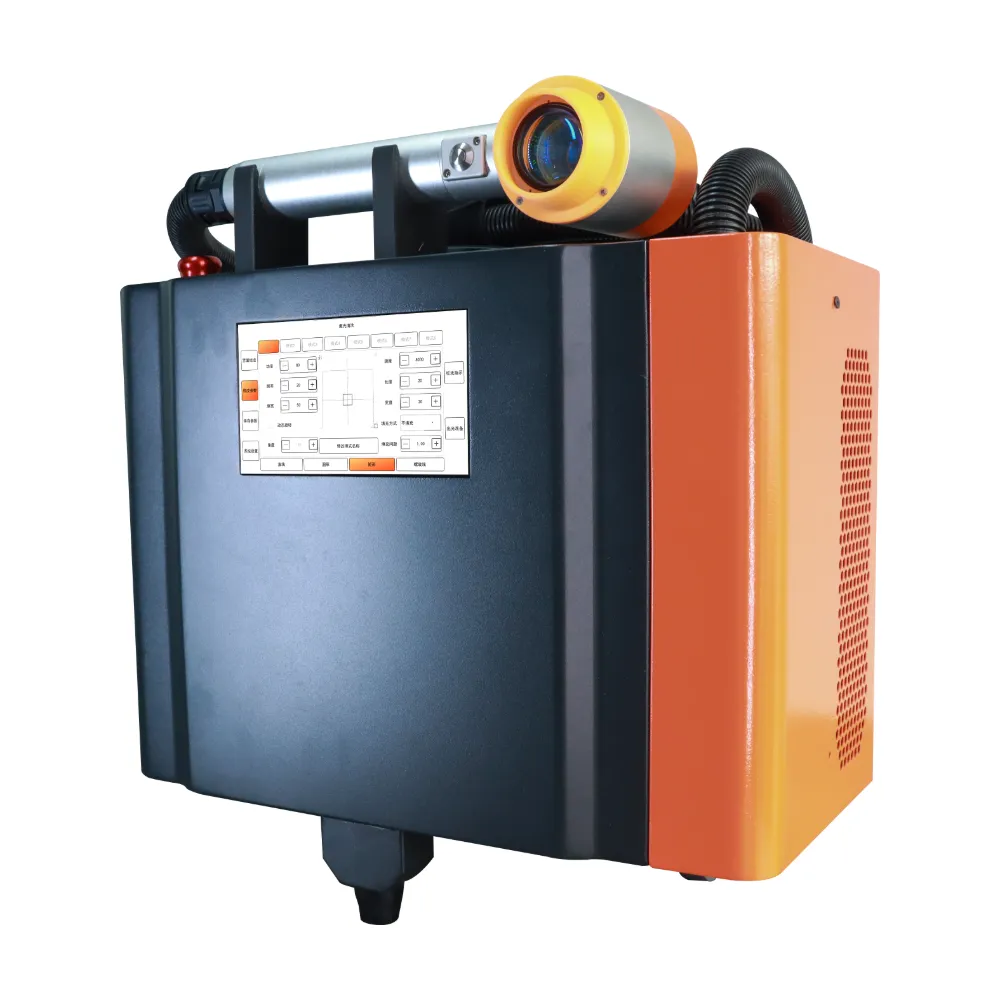

Pulsed Rod Laser Cleaning Machine (Air-Cooled)

Equipment characteristics

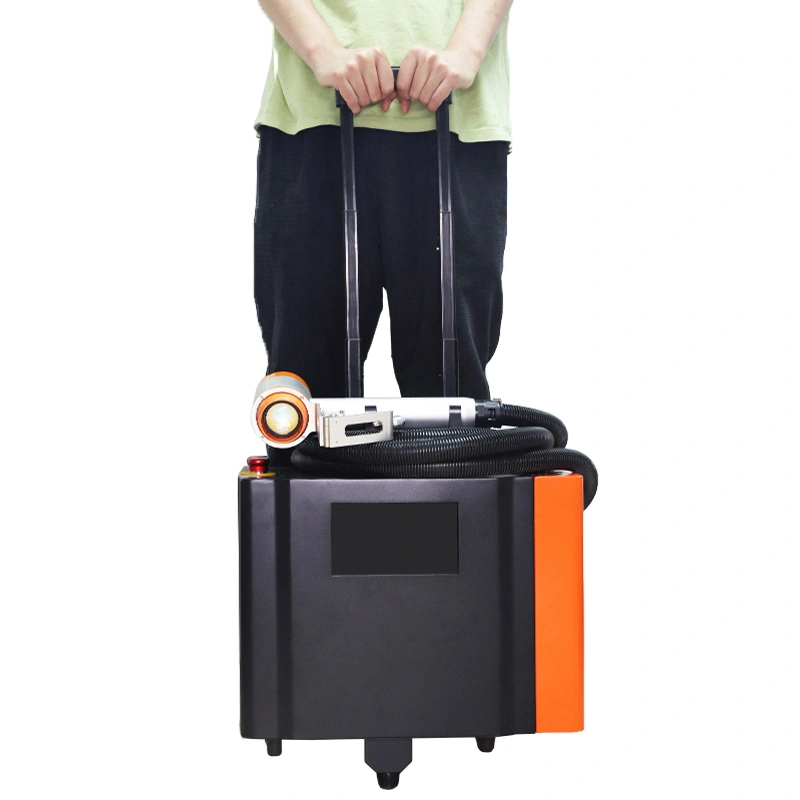

• The pulsed-rod portable design offers great maneuverability. The whole machine weighs only about 25kg, occupies a small footprint and is easy to move and transport.
• Efficient non-destructive cleaning with remarkable performance on rust, oil stains, coatings and oxide layers.
• High cleaning efficiency saves working time. No consumables required, safer and eco-friendly.
• Equipped with LCD touch screen for simple operation. Operators can master operation within 5 minutes with stable system.
• Supports 8 scanning modes and multiple cleaning shapes, compatible with various materials.
• Precise cleaning built with auxiliary focusing device to fix focal length, preventing inaccurate focal control and low cleaning efficiency.
• Ultra-long service life; the laser source runs up to 100,000 working hours.
• Pulsed‑rod laser cleaning machine (air‑cooled)

  Item	Parameter
  Laser type	Pulse
  Laser power	200W/300W/500W
  Laser wavelength	1060‑1080nm
  Maximum pulse energy	1.2mJ/1.5mJ
  Cooling mode	Air cooling
  Pulse width	20‑500 Adjustable
  Frequency regulation range	1‑3000 Adjustable
  Output armor length	3m/5m Customizable
  Scanning range	0‑100mm Adjustable, Dual axis supports 8 scanning modes
  Field mirror focal length	254 (160mm/300mm/420mm)
  Power supply mode	Plug in
  Voltage range	AC110/220V 50/60HZ
  Operating temperature	5℃~40℃
  Working ambient humidity	≤80%
  Maximum power consumption	≤800W
