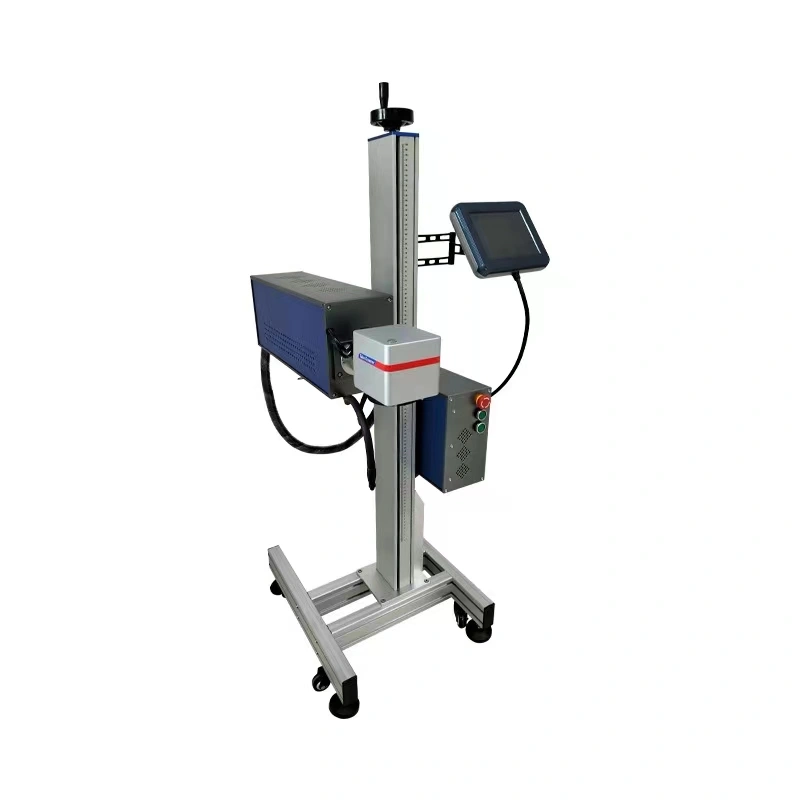

Benchtop Flying CO2 Laser Marking Machine
Equipment characteristics
- Adopts sandblasted anodized full aluminum structure, sturdy and durable for long-term production operation.
- Equipped with sealed metal radio frequency CO₂ laser generator, available in 30W/40W/60W power options.
- Laser wavelength standard 10.6μm, optional 10.2μm or 9.3μm to meet different non-metal marking requirements.
- Max marking speed up to 12000mm/s, repeated positioning accuracy reaches 0.01mm for delicate marking.
- Built-in 8-inch touch controller, intuitive operation without extra computer deployment.
- Three marking modes including static, analog and encoder synchronous flying marking for assembly line use.
- Supports multi-language operation: English, French, Spanish, German, Chinese, Russian, Arabic and more.
- Automatically removes cross points to prevent overlapping traces during continuous marking.
- Comes with missed marking detection function and real-time alarm triggered by abnormal material reflection.
- Built-in data protection function to save marking data when power cuts off unexpectedly.
- Compatible with BMP, DXF, HPGL, JPEG, PLT formats, supports barcodes, QR codes, text and graphics marking.
- Air cooling design, stable continuous operation, suitable for long-hour online production marking.
Technical Specifications
Product Parameter Table
CO₂ Flying Laser Marking Machine
| Category | Item | Parameter |
| Machine Characteristics | Whole Machine Material | Sandblasted anodized full aluminum structure |
| Laser Source | Sealed metal RF CO₂ laser generator | |
| Laser Wavelength | Standard 10.6μm; Optional 10.2μm or 9.3μm | |
| Actual Output Power | CO2-30W ≥38W; CO2-40W ≥43W; CO2-60W ≥70W | |
| Marking Speed | ≤12000mm/s | |
| Main Controller | 8-inch touch controller | |
| Cooling System | Air cooling for 30W/40W; Air cooling for 60W | |
| Focus Lens | Focal length 145mm | |
| Marking Parameters | Minimum Line Width | 0.03mm |
| Repositioning Accuracy | 0.01mm | |
| Marking Range | 110mm×110mm (Optional) | |
| Positioning Method | Red light focusing | |
| Marking Line Quantity | Arbitrary lines within marking range | |
| Production Line Speed | 0~130m/min (Depends on specific materials) | |
| Software Introduction | Multi-language | English, French, Spanish, German, Chinese, Russian, Arabic, etc. |
| Management Authority | Multi-user management permission | |
| Operating System | Linux System | |
| Marking Modes | Static, Simulation, Encoder three marking modes | |
| Reserved Signals | Mark start, marking status, marking completion, fault alarm | |
| Data Protection | Power-off data protection function | |
| Missing Mark Detection | Triggered by material reflection error, with overspeed alarm function | |
| Intersection Removal | Automatically remove intersection points to avoid overlapping marks | |
| Coding Software | Supports single or dual coding | |
| Font Library | Standard font library including Chinese, English, numbers and traditional Chinese | |
| Supported Types | File Formats | BMP / DXF / HPGL / JPEG / PLT |
| Barcodes | CODE39, CODE128, CODE126, QR, Datamatrix (Optional) | |
| Power Supply | 220V/50HZ | |
| Overall Parameters | Machine Net Weight | Laser unit 30W/40W:13kg; Laser unit 60W:23kg; Flying bracket:30kg |
| Overall Dimension | 30W/40W machine head: 666×160×165mm; 60W machine head: 850×160×165mm | |
| Environment Requirements | Working Condition | Ambient temperature 0℃–45℃; Humidity ≤95%, non-condensing, vibration-free |
