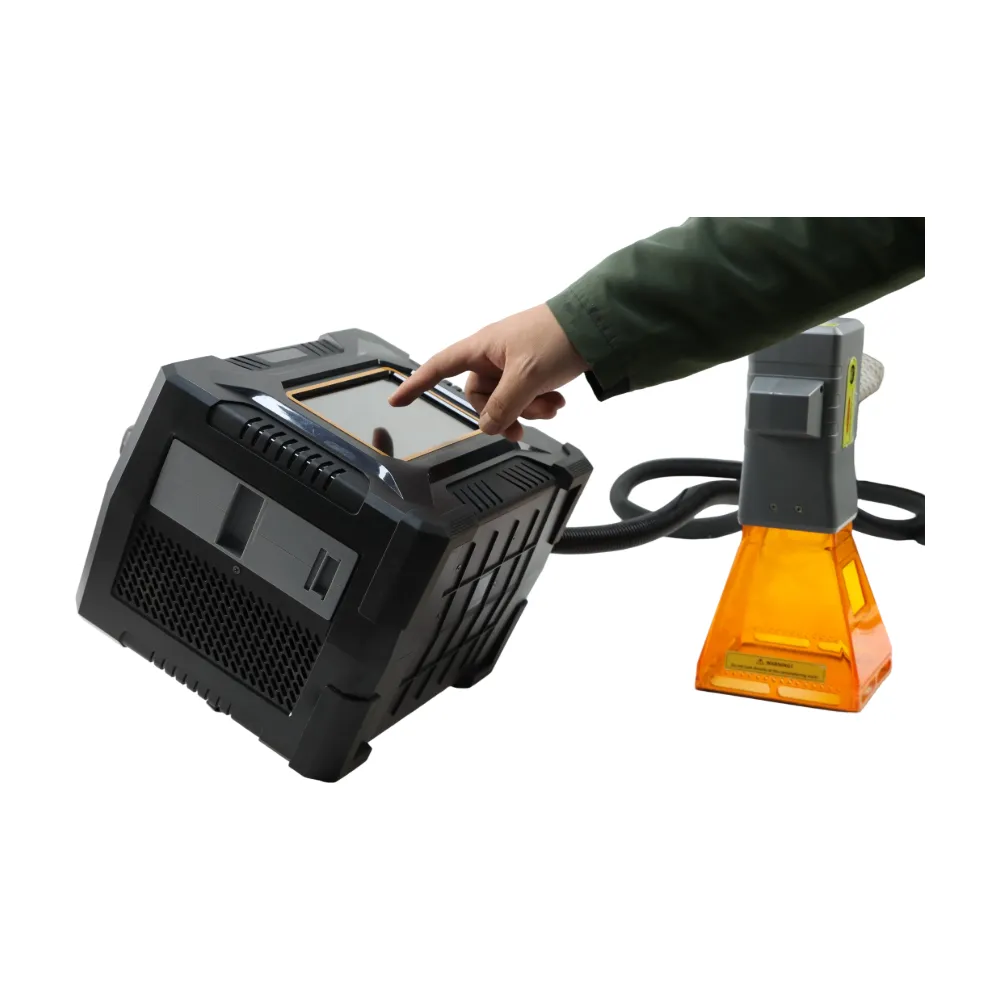

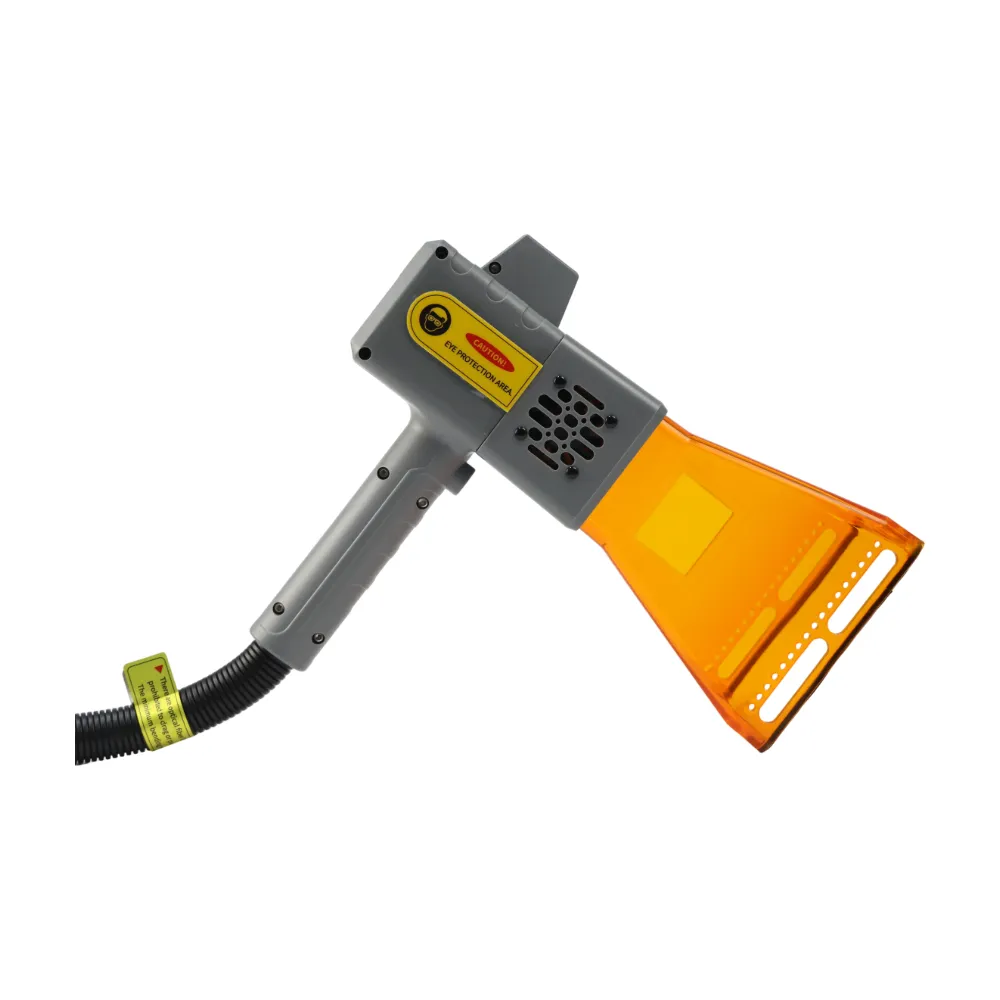

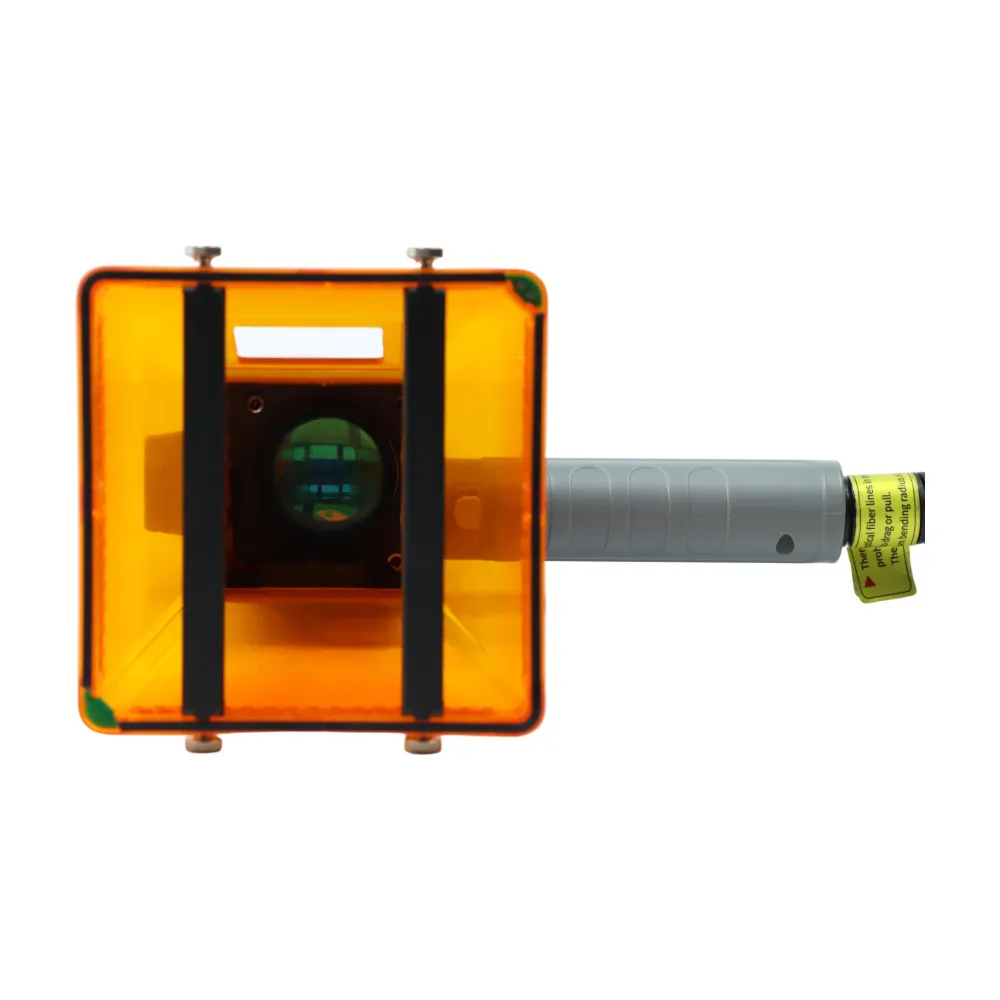

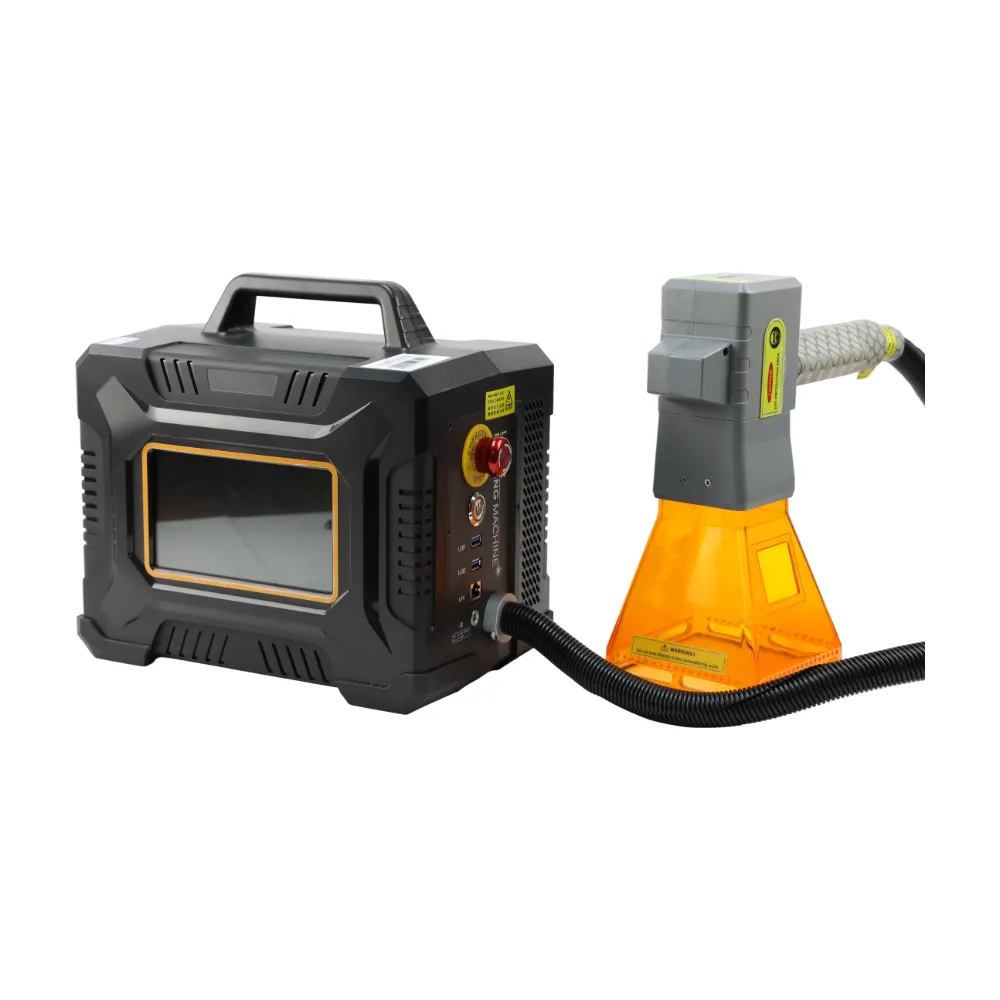

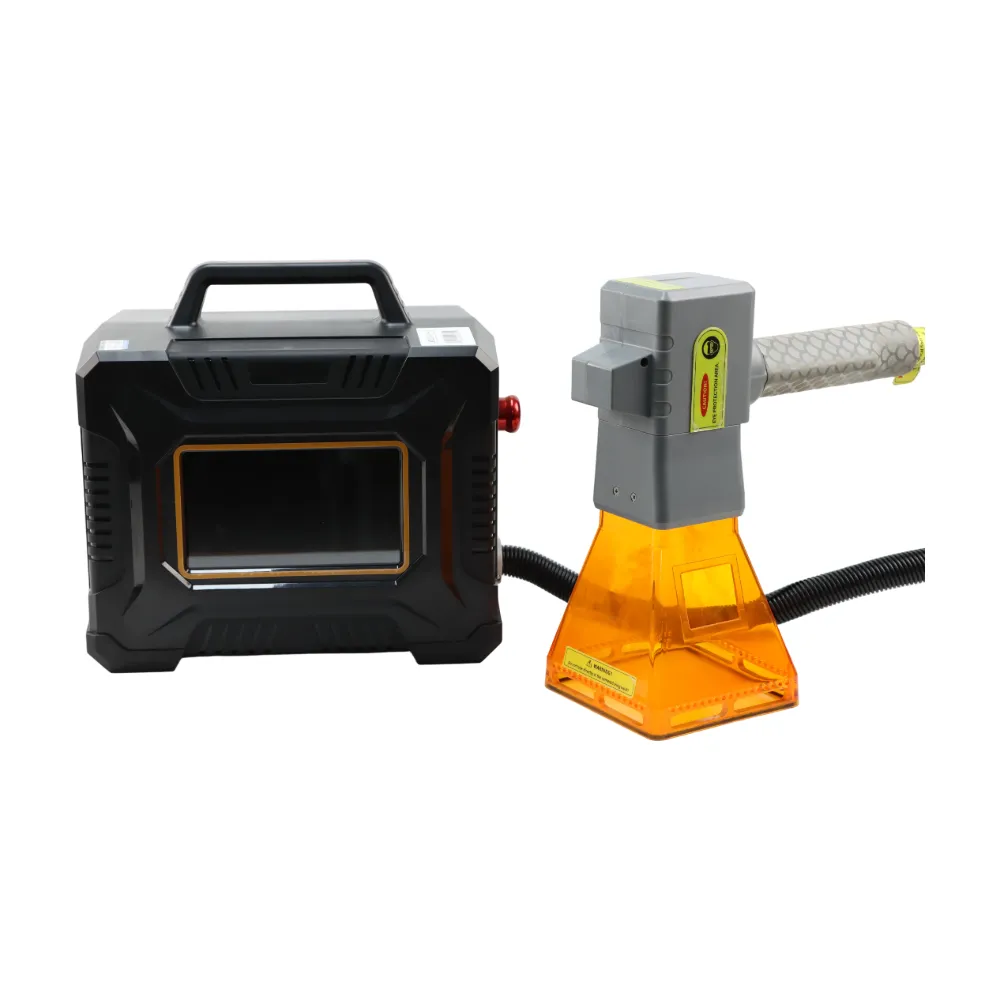

Second Generation Portable Handheld Fiber Laser Marking Machine
Equipment characteristics
- Small size, weight about 6 kg, easy to carry, to solve the problem of mobile marking.
- Fast speed, high stability, low power consumption.
- Laser service life of up to 100,000 hours.
- 7 inch touch capacitive screen design, simple operation, no need to configure a computer.
- Support Bluetooth, WIFI and mobile APP connection use; It can remotely control the device through Windows or Apple computer to realize the synchronization function between the mobile phone and the machine.
- Support Jpg, Png, Bmp, Svg, Plt, Dxf, Excel, TxT, Barcode, two-dimensional code and other formats import.
- Built-in lithium battery, no external power supply.
Technical Specifications
| Product Parameter Table | 2nd‑Generation Portable Mobile Laser Marking Machine |
| Whole‑machine Material | Environmental‑friendly Engineering Plastic |
| Laser Type | Fiber Laser Generator |
| Laser Power | 20W/30W/50W/60W/100W |
| Laser Wavelength | 1064 nm |
| Maximum Pulse Energy | ≥1.4 mJ |
| Marking Method | High‑precision Dual‑dimensional Scanning Mode |
| Cooling System | Air‑cooling |
| Operating System | Linux System |
| Operation Interface | Embedded Laser Intelligent Scanning System, built‑in 7‑inch Capacitive Touch Screen |
| Mobile APP | Supported |
| Special Functions | Reserved secondary‑development interface; software supports secondary development for docking with ERP, MES systems |
| Lifting Platform for Marking Machine | Optional accessory |
| Interface Configuration | Dual USB ports, single network port, power supply interface, built‑in Bluetooth & WIFI |
| External Connection | Supports external keyboard, mouse, barcode scanner, display, etc. |
| Signal Interface | Built‑in Bluetooth, WIFI |
| Frequency Adjustment Range | 45‑170 KHz (adjustable) |
| Marking Line Type | Dot‑matrix & Vector integrated (supports both dot‑matrix and vector marking) |
| Marking Scope | 100×100 mm (50×50 mm /150×150 mm optional) |
| Positioning Method | Red‑light Positioning |
| Supported Marking Content | Text, QR‑codes, vector graphics, date & time, bitmaps, geometric figures, etc.
Editable combined graphics; supports hand‑drawn, spiral, Lissajous curve drawing |
| Supported Import Formats | jpg, png, bmp, svg, plt, dxf, Excel, TXT, barcodes, QR‑codes, etc. |
| Cleaning Mode | Supports 8 scanning modes |
| Anti‑re‑marking Function | Supported |
| System Languages | Chinese, English, Japanese, Russian, Italian, Spanish, Portuguese,
|
| Minimum Line Width | 0.02 mm |
| Repositioning Accuracy | 0.003 mm |
| Laser Service Life | Approx. 100 000 hours |
| Barcode / QR‑code | CODE25, CODE39, CODE93, CODE49, CODE128, CODE126, CODE128,
EAN13, EAN128, PDF417, CODBAR, UPCA, UPCA_CHK, UPCE_CHK, DataMatrix, QRCode, etc. Adjustable barcode size & grade; supports dot‑mode, circle‑mode, rectangle‑mode |
| Supported Marking Materials | Stainless steel, carbon steel, alumina, aluminum alloy, gold, copper, brass, iron, silver,
hard alloy, painted metal, other metals, acrylic, PVC, leather, plastic, painted wood board, etc. |
| Power Supply Voltage | 90V‑240V, 50/60Hz |
| Power Supply Mode | Plug‑in / Battery powered (supports working while charging) |
| Battery Capacity | ≥14500 mAh |
| Max Power Consumption | 200W |
| Full‑battery Duration | 4 h |
| Charging Time | ≤2 h |
| Operating Temperature | 0‑40 ℃ |
| Ambient Relative Humidity | 30‑85 RH (non‑condensing) |
| Net Weight | Lithium‑battery version: 9‑12 kg Power‑supply version: 7‑10 kg |
| Ambient Temperature | 0‑40 ℃ |
| Overall Dimensions | Main unit: 314×213×290 mm
Handheld gun head: 145×290×250 mm |
| Packing Size | 450×450×450 mm |
| Packing Weight | 8 kg |
