How Benchtop CO₂ Laser Marking Technology Transforms Packaging Operations

High-speed production lines demand continuous, ultra-reliable coding without frequent line stops. Traditional inkjet systems require ongoing maintenance, liquid solvents, and frequent nozzle unclogging. These issues slow down high-volume packaging workflows.

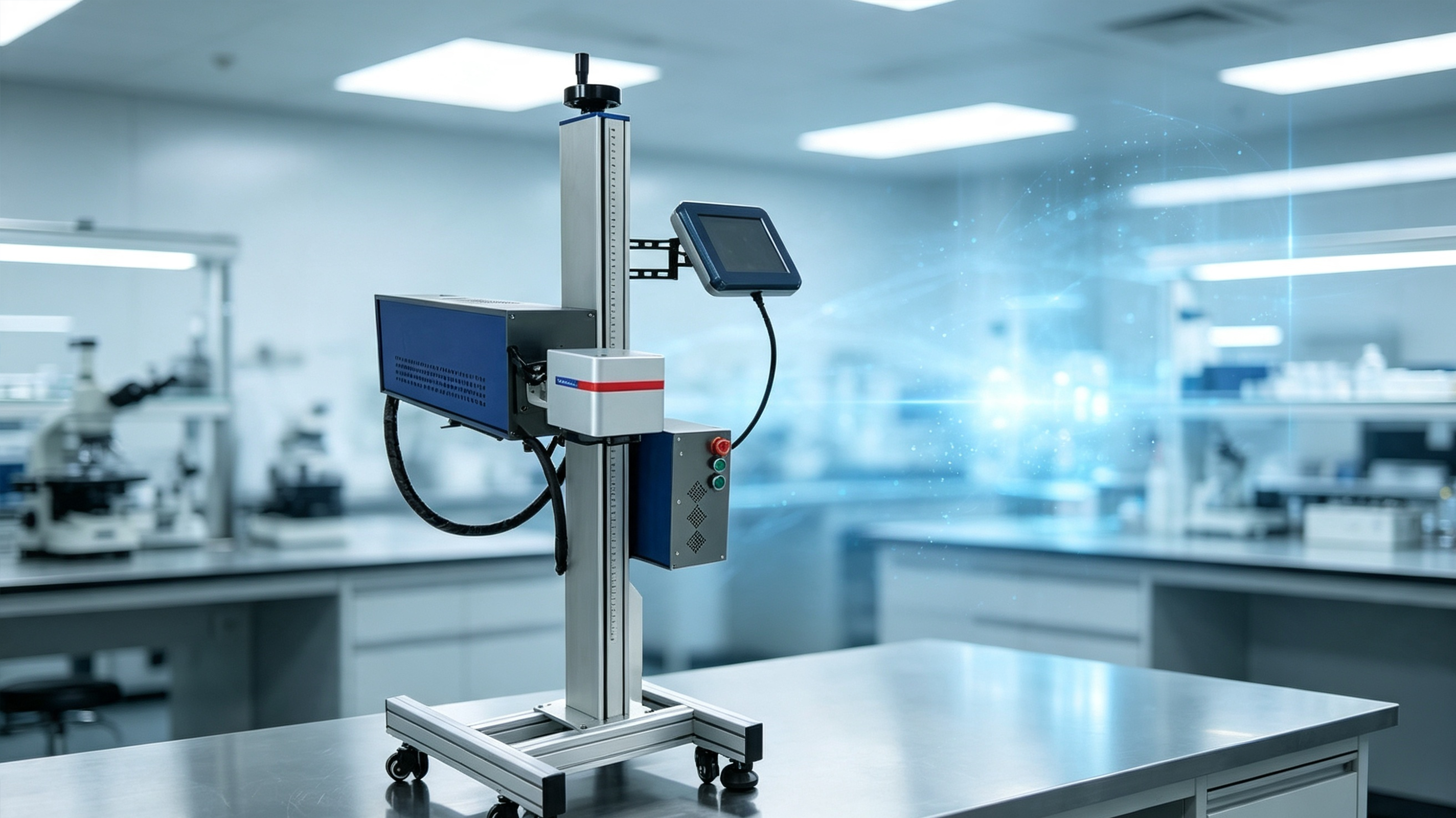

To overcome these operational challenges, modern packaging facilities are adopting the Benchtop CO₂ Laser Marking Machine. Operating at a 10.6μm wavelength, CO₂ laser coders deliver clean, highly readable text, QR codes, and batch numbers on organic and non-metallic surfaces. Below are three real-world application cases showing how this flying laser technology enhances dynamic production lines.

Case 1: High-Speed Expiry Date Marking on PET Bottled Water

Background

A high-volume beverage manufacturer needed to mark production dates, batch codes, and precise timestamps on clear PET mineral water bottles. Their previous continuous inkjet system suffered from frequent smudging, ink adhesion failures on wet bottles, and high solvent expense.

Solution

The facility installed a Benchtop CO₂ Laser Marking Machine equipped with a high-speed galvanometer scanner and an automatic optical sensor next to their bottling line. The integrated 8-inch touch screen allows operators to quickly set variable text and real-time production timers.

Results

• Instant Inkless Printing: The 10.6μm laser creates crisp, permanent white micro-characters directly on the PET surface without melting or puncturing the plastic.

• Non-Stop Fly-Marking: Capable of handling conveyor speeds up to 130 meters per minute, matching peak bottling throughput effortlessly.

• Zero Solvent Costs: Eliminating ink cartridges and solvents reduced monthly line maintenance costs and ensured a dry, clean working environment.

Case 2: Dynamic QR Code and Batch Printing on Cardboard Shipping Boxes

Background

A logistics and packaging center required automated, high-contrast QR code and barcode marking on moving corrugated cardboard shipping boxes. Traditional labels often peeled off or skewed during high-speed conveying, creating sorting errors in automated warehouses.

Solution

The company integrated a 40W Benchtop CO₂ Laser Marking Machine directly above their main roller conveyor line. Using built-in auto-tracking software and a rotary encoder, the machine adjusts marking speed in real time to match conveyor movement.

Results

• 100% Scan Readability: The laser burns away the top layer of paper fibers to produce sharp, high-contrast barcodes and vector graphics.

• Automated Data Protection: Automatic line-speed synchronization prevents overlapping text or distorted barcode geometry during conveyor acceleration.

• Low Power Draw: Operating efficiently with total power draw under 400W, the system delivers heavy-duty 24/7 output with minimal energy usage.

Case 3: Permanent Logo and Traceability Etching on Wooden Craft Products

Background

A manufacturer of premium wooden crafts and consumer goods needed to etch detailed brand logos, serial numbers, and origin graphics on rounded wooden handles and wooden fans. Chemical inks soaked into the raw grain, causing blurry logos and inconsistent color contrast.

Solution

The team adopted a Benchtop CO₂ Laser Marking Machine configured with a 110mm × 110mm marking field. Using vector font software, operators loaded custom brand graphics, vector outlines, and alphanumeric series files directly into the Linux control system.

Results

• Rich Natural Contrast: The carbon dioxide laser reacts naturally with wooden fibers, creating clean, dark, burnt-in graphics without bleeding into the wood grain.

• Micro-Line Precision: Achieved line widths down to 0.03mm and repeatability precision of 0.01mm, keeping intricate brand logos sharp and clear.

• Simple Compact Setup: The lightweight aluminum body and flexible 2D mounting stand allowed quick height and angle adjustments for various product sizes.

Technical Specifications Overview

To help evaluate system compatibility for your line, the table below summarizes key operational parameters for the Benchtop CO₂ Laser Marking Machine series:

Why Upgrade Your Marking Line Today?

Upgrading to a benchtop CO₂ laser coder eliminates recurring ink costs, reduces maintenance downtime, and keeps your packaging line clean. Whether you mark plastic bottles, paper boxes, glass containers, or wooden items, CO2 laser technology offers high-speed, permanent, and accurate code printing across all your packaging needs.
