How Desktop UV Laser Marking Technology Transforms Modern Production Lines
Case Details
High-definition product coding has become a non-negotiable requirement across global manufacturing lines. Consumers demand clear batch numbers, readable expiry dates, and scannable QR codes on every item they buy. Traditional inkjet coders often smudge, demand constant solvent refills, and require frequent nozzle cleaning.
To solve these daily operational headaches, manufacturers are upgrading to the Desktop UV Laser Marking Machine. Utilizing a 355nm short wavelength, UV laser marking is known as "cold processing" because it marks surfaces without heat damage or burning. Below are three real-world application cases showing how this technology works in modern production environments.
Case 1: High-Speed Expiry Date Printing on HDPE Household Cleaning Bottles
Background
A major producer of personal care products needed to mark manufacturing dates and batch numbers on curved HDPE liquid soap and detergent bottles. Their previous inkjet system suffered from frequent nozzle clogs, and ink marks often smudged when coming into contact with chemical spills during filling.
Solution
The company integrated a 3W Desktop UV Laser Marking Machine equipped with a high-speed galvanometer scanner into their packaging workflow. The compact desktop footprint allowed easy installation next to the existing conveyor line without redesigning the floor layout.
Results
-
Sharp, Permanent Codes: The 355nm laser light alters the surface layer of the HDPE plastic without melting or weakening the bottle wall.
-
Zero Chemical Ink Costs: Eliminating ink and solvent cartridges saved thousands of dollars in annual consumables.
-
Clean Operation: Because the system requires no liquid inks, the production area stays dry, clean, and free of solvent fumes.
Case 2: Crisp 2D QR Code Marking on Flexible Film Food Pouches
Background
A flexible packaging manufacturer needed to mark fine, high-density QR codes and multi-line batch data on thin laminated foil and plastic pouches for food products. CO2 lasers generated too much heat, burning through the thin film, while traditional printing could not dynamically update serial numbers on individual bags.
Solution

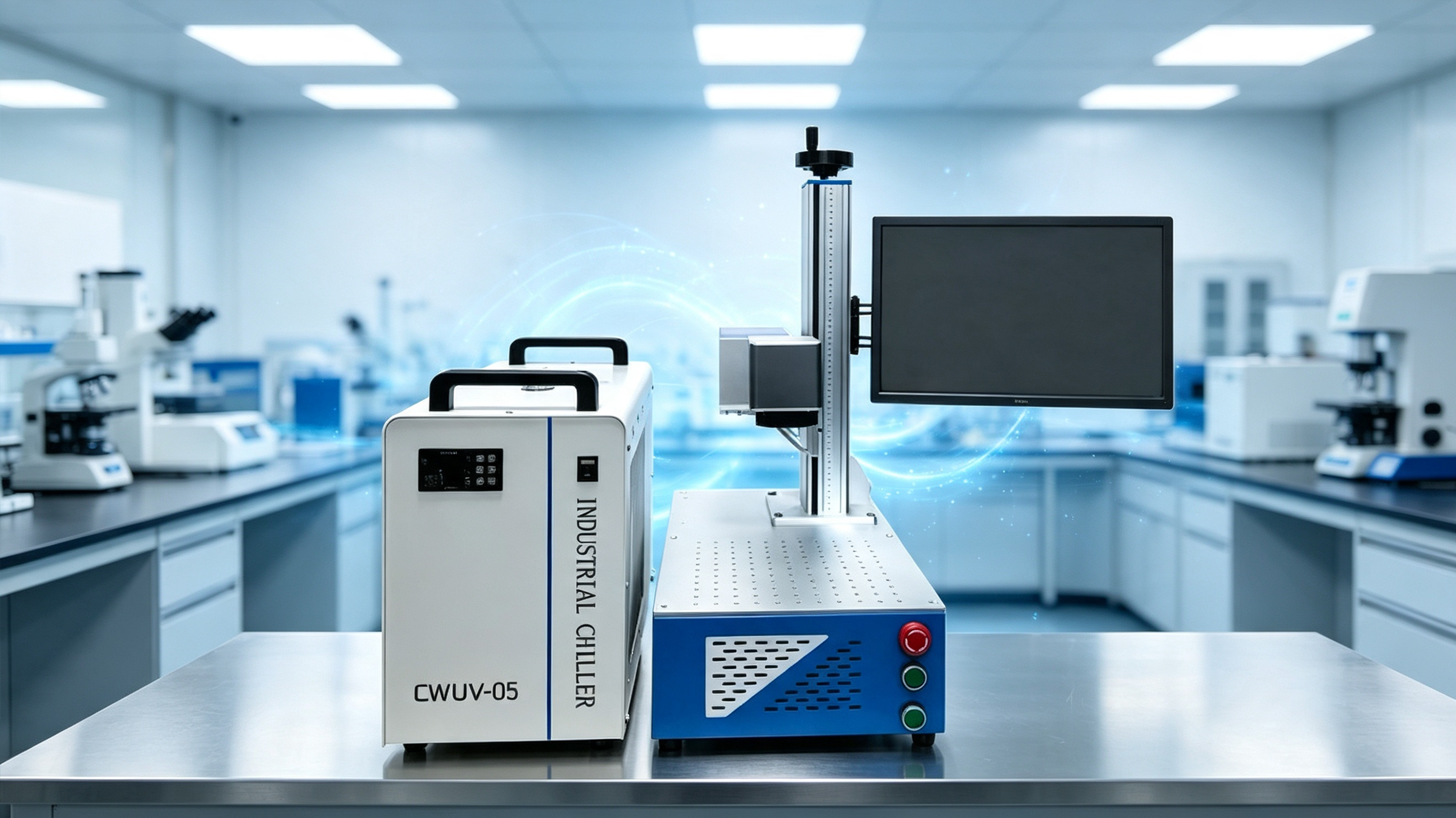

The manufacturer adopted a 5W Desktop UV Laser Marking Machine paired with the dedicated CWUV-05 industrial water chiller. The low pulse width (< 60 ns) and precise spot size allowed ultra-fine marking without damaging sensitive underlying layers.
Results
-
100% Scan Accuracy: High beam quality (M² < 1.5) produced crisp, high-contrast QR codes easily read by commercial barcode scanners.
-
Thermal Protection: Cold processing prevented thermal deformation or puncturing of thin poly films.
-
Continuous Duty Cycle: The water-cooled chiller enabled reliable 24/7 continuous operation during peak production runs.
Case 3: Anti-Counterfeiting Codes on Plastic Closures and Bottle Caps
Background
A beverage bottling facility needed to print micro-characters and anti-counterfeiting tracking numbers on the inside and outside of small plastic bottle caps. The characters needed to be extremely small (0.15 mm) while remaining completely legible under inspection lenses.
Solution
By using the Desktop UV Laser Marking Machine's advanced software and built-in vector fonts, the team configured automated variable text and serial number sequences.
Results
-
Micro Precision: Achieved repeat marking accuracy of ±0.001 mm, producing clean text at character heights down to 0.15 mm.
-
Tamper-Proof Security: Laser marks are permanently etched into the plastic substrate, preventing code alteration or mechanical rubbing.
-
Energy Efficient: The entire desktop machine consumes less than 400W, offering maximum performance with minimal power draw.
Key Technical Specifications Overview
To help you evaluate fit for your line, the table below summarizes the key operational parameters of the Desktop UV Laser Marking Machine series:
| Parameter | Specification / Performance |
| Laser Wavelength | 355 nm (Ultraviolet) |
| Laser Power Options | 3W / 5W |
| Marking Field Range | 110 mm × 110 mm |
| Marking Speed | ≤ 10,000 mm/s |
| Minimum Character Height | 0.15 mm |
| Repeatability Precision | ±0.001 mm |
| Cooling Method | Water Cooling (CWUV-05 Chiller) |
| Power Consumption | < 400 W |
| Overall Machine Size | 603 mm × 352 mm × 800 mm |
Why Upgrade Your Marking Setup Today?
Switching to a desktop UV laser system streamlines daily operations, reduces downtime, and eliminates recurring consumable expenses. Whether you process plastic containers, glass bottles, coated papers, or electronic parts, UV laser technology delivers clean, clear, and durable results on every pass.
